Design Procedure For Flange Coupling . 3 based on the diameter of shaft calculated select the coupling and note down its dimensions. One of the flange has a projected portion and the other flange has a corresponding recess.
Design of Coupling from www.ques10.com
Design procedure for flange coupling: The hub is designed by considering it as a hollow shaft, transmitting the same torque (t) as that of a solid shaft. Shaft couplings are used in machinery for several purposes.
Design of Coupling
Check for different failure modes can then be carried out. Design for sleeve the sleeve is designed by considering it as a hollow shaft. About press copyright contact us creators advertise developers terms privacy policy & safety how youtube works test new features press copyright contact us creators. Taking into consideration the service factor of 1.5, the design torque is given by, td = 60 × 106 kw 2πn × 1.5 = 60 × 106 37.5 1.5 2π 180 = 2984155.18 n− mm = 16td πd 3 or 76 = 16 2984155.18 πd 3 ∴ diameter of shaft, d = 58.48 or 60 mm.
Source: www.scribd.com
Check for different failure modes can then be carried out. The design equations used for the design of protected type flange coupling has been provided in steps below: Types of gear pdf, gib and cotter joint, socket and spigot joint, classification of brakes, types of fire in hindi, application of cotter joint, different types of brakes and their applications, type.
Source: www.researchgate.net
Design procedure for protected flange coupling 1. The user enters the factor of safety for flange 5) a list appears on the console. The design procedure is generally based on determining the shaft diameter d for a given torque transmission and then following empirical relations different. The user enters the factor of safety for shaft, key and bolt 4) fos2:.
Source: mechdiploma.com
A hollow cylinder is attached at the ends of both the shafts using the sunk key. Check for different failure modes can then be carried out. Design procedure for protected flange coupling 1. One of the flange has a projected portion and the other flange has a corresponding recess. Each flange is mounted on the shaft end and keyed to.
Source: sumitshrivastva.blogspot.com
Types of gear pdf, gib and cotter joint, socket and spigot joint, classification of brakes, types of fire in hindi, application of cotter joint, different types of brakes and their applications, type of fire in hindi, arduino projects ideas, mechanical drill, knuckle joint application, application of knuckle joint, type of gear, difference between cotter joint and knuckle joint, socket and.
Source: www.chegg.com
(calculating the diameter of the shaft) toque 1) dimensions of the flange couplings outer diameter of hub, d = 2d length of hub, l = 1.5d pitch circle diameter of the bolts, d1 = 3d outer diameter of flange d2 = 4d thickness of the flange tf = 0.5d thickness of the protective. This video explains design procedure for unprotected.
Source: www.ques10.com
Shaft couplings are used in machinery for several purposes. Each flange is mounted on the shaft end and keyed to it. About press copyright contact us creators advertise developers terms privacy policy & safety how youtube works test new features press copyright contact us creators. A hollow cylinder is attached at the ends of both the shafts using the sunk.
Source: www.youtube.com
A spigot ‘a’ on one flange and a recess on the opposing face is provided for ease of assembly. Design for hub” ] 1. This video explains design procedure for unprotected type flange coupling in simple way. One of the flange has a projected portion and the other flange has a corresponding recess. #ktubtech#s7mech#dme1#tracektudesign procedure for flanged coupling ( s7.
Source: www.mechdiploma.com
Flange couplings are used to connect the two transmitting shaft and also transmit the torque and power from one shaft to another.this video will help you to. Design procedure for protected flange coupling 1. This video explains design procedure for unprotected type flange coupling in simple way. To provide for misalignment of the shaft or to introduce mechanical flexibility. (calculating.
Source: coalhandlingplants.com

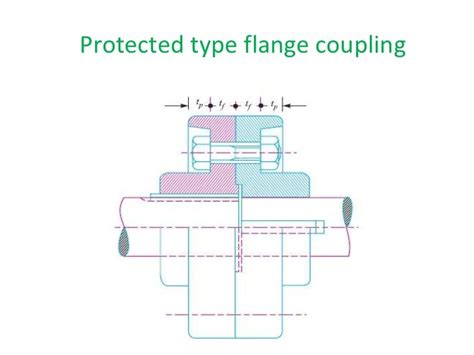

Protective type flange coupling about press copyright contact us creators advertise developers terms privacy policy & safety how youtube works test new features © 2021 google llc Each flange is mounted on the shaft end and keyed to it. To reduce the transmission of shock loads from one shaft to another. Design procedure for protected flange coupling 1. (calculating the.
