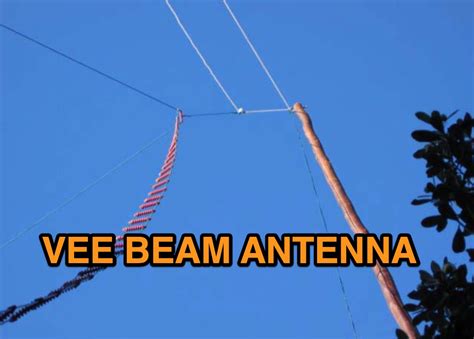

Vee Beam Antenna Design . The dimensions are not critical. Build them and the dx will come!
20 meter 3 elements wire inverted Vee flip antenna YO8RXP from yo8rxp.com
Each leg is 300 feet in length. The basic formula for determining the wire length of a center fed, 1/2 wave wire dipole or inverted vee antenna is: Ref2 horizontal v antenna for 15 meters “the horizontal v antenna for 15 meters” this often leds to the question of what is a beam antenna.
20 meter 3 elements wire inverted Vee flip antenna YO8RXP
If you're lucky enough to have the room, perhaps you may like to put up a multiband vee beam antenna for the hf bands. With 1 wavelength legs, the angle between the legs is ideally approx. Hand wound 4:1 voltage balum. 50′ 213 coax to tuner, so perfect on any frequency.
Source: yo8rxp.com
The design described here was in use for several years, proved to be highly reliable and generally capable of outperforming a tribander on 20, 15 and 10 for stations in the vee beams’s line of fire. These antennas are considered to be short vee beams if at; Each leg is 300 feet in length. Symmetrical vee antenna having a specified.
Source: www.youtube.com
These antennas are considered to be short vee beams if at; In it smallest of states, the horizontal vee, must be one of the least researched or understood antennas. Offset fed, one leg is 106′ the other is 112′. Inverted v 3 element at 11m (green), horizontal dipole at 16m (red), 5/8λ top loaded on 18m high fiberglass mast +32.
Source: yo8rxp.com
The design described here was in use for several years, proved to be highly reliable and generally capable of outperforming a tribander on 20, 15 and 10 for stations in the vee beams’s line of fire. Gain is 14.15 dbi, or about 6 db over a dipole. If you're lucky enough to have the room, perhaps you may like to.
Source: www.antenna.be

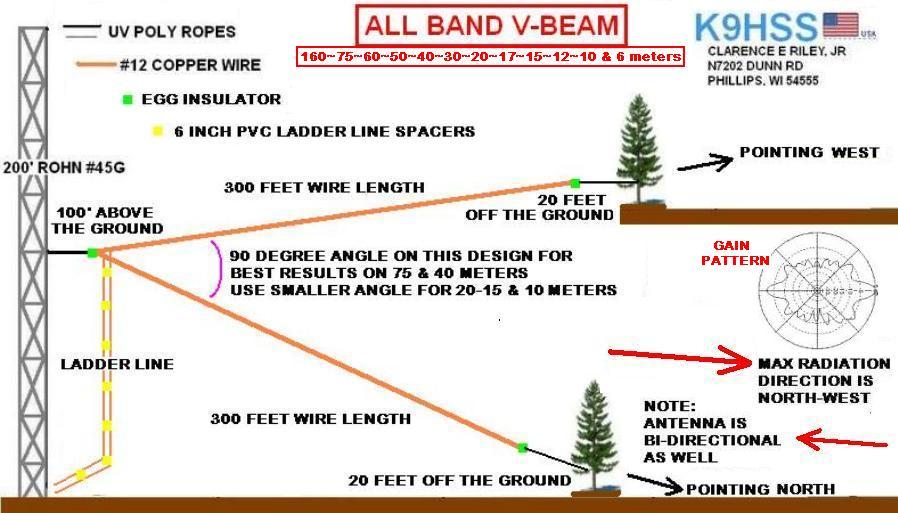

Each leg is 300 feet in length. The antenna used at ve3owv is shown in figure 1. Ref2 horizontal v antenna for 15 meters “the horizontal v antenna for 15 meters” this often leds to the question of what is a beam antenna. Fencing wire with the ends spaced 170 feet apart. The design described here was in use for.
Source: yo8rxp.com
The dimensions of this antenna were provided by nick, ve3owv. Each leg is 300 feet in length. They are erected on 100 foot wooden utility poles, also the site has two large vee beam antennas which are over 1200 foot long each. 50′ 213 coax to tuner, so perfect on any frequency. Antenna design vee dipoles are characterized by increase.
Source: yo8rxp.com
This proved the antenna design, and it even operated on the 80m net in the evening with a relatively low height (25ft). The dimensions are not critical. I am very positive about my new antenna support and plan to take it with me abroad in future so i am free from reliance on trees. Symmetrical vee antenna having a specified.
Source: yo8rxp.com
The design described here was in use for several years, proved to be highly reliable and generally capable of outperforming a tribander on 20, 15 and 10 for stations in the vee beams’s line of fire. With 1 wavelength legs, the angle between the legs is ideally approx. This proved the antenna design, and it even operated on the 80m.
Source: www.qrz.com
The model 3403 is a shorter version of the antenna that covers 3.5 to 30 Vee beams i've field tested showed little or no noticeable gain or directivity until the leg lengths were at least 1 wavelength. Using open wire feed, minimum 4 ft (longer is ok, but remember it is a part of the antenna at frequencies under 21.
Source: yo8rxp.com
A vee beam will perform well as a directional antenna with a leg length of between 1 and 5 wavelengths. If you're lucky enough to have the room, perhaps you may like to put up a multiband vee beam antenna for the hf bands. In it smallest of states, the horizontal vee, must be one of the least researched or.
